OPEN WI.DE carbon frame (frameset) maat 55 *Nieuw gravelbike
OPEN WI.DE carbon frame (frameset) maat 55 *Nieuw gravelbike
Zoek je 1 van de allerbeste gravelbikes / gravelframes? Ja, lees dan verder.

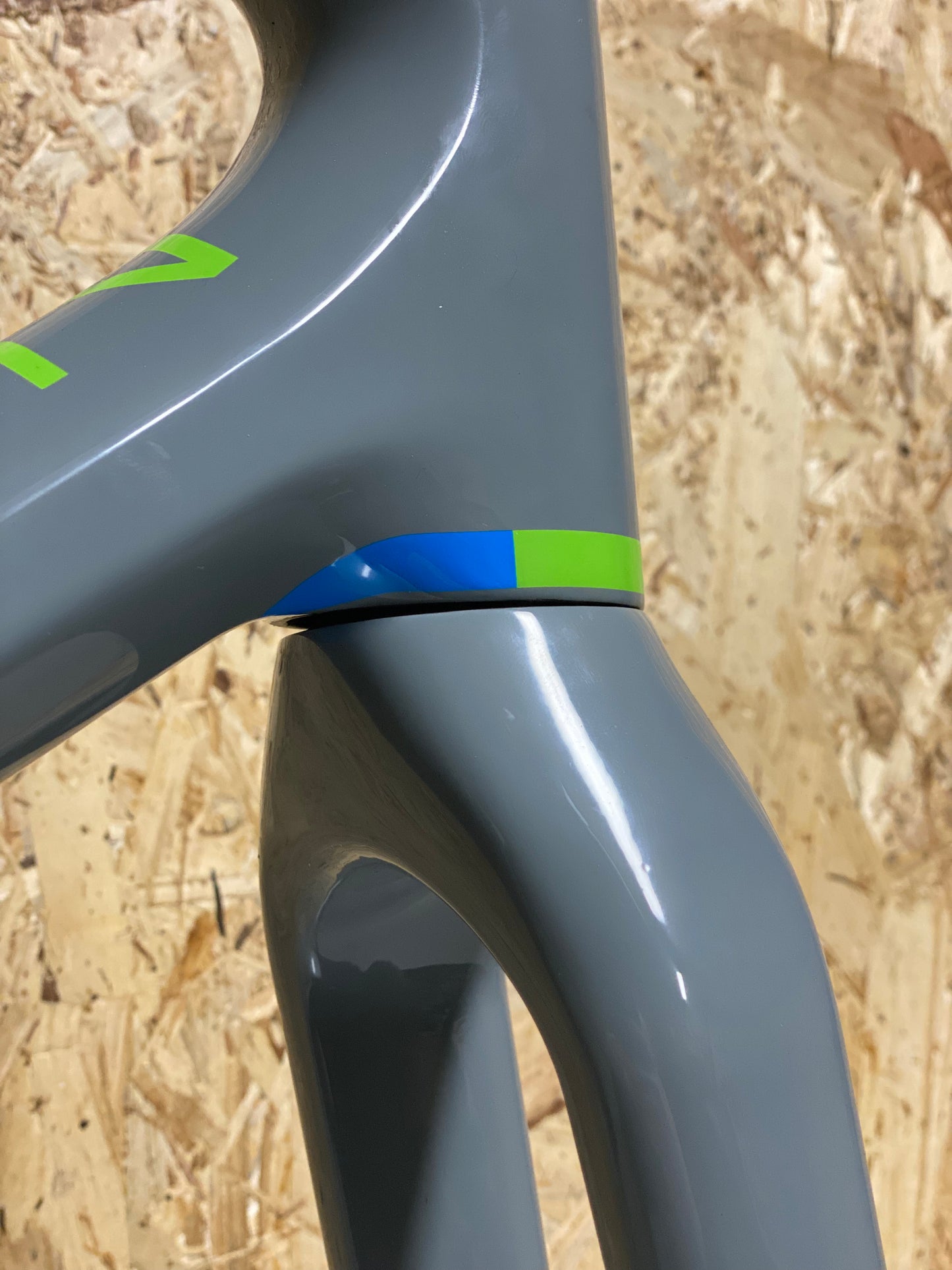

Hierbij bieden wij een prachtige OPEN WI.DE gravel Carbon frameset aan in de maat M =55cm. Geheel nieuw en compleet met alle toebehoren.
Dit carbon frame is alleen geschikt voor 1x aandrijflijn, maar met 650b wielen passen er 2.4 banden in, extreem breed dus!
Dit frame compleet laten opbouwen kan ook. Vraag dan naar de mogelijkheden.
Van 3400 euro voor 2999 euro. KOOPJE maar 1 exemplaar voorradig!
Frame wordt met factuur geleverd.
Dit frame is vergelijkbaar met een Cervelo, Specialized, S-works, Bianchi, Trek, Cannondale Topstone, Diverge, Crux, Aspero, Open, Wide, Up, Checkpoint.
Beschrijving van de leverancier:
The OPEN U.P. inspired a generation of gravel bikes that could fit up to 2.1” tires. The WI.DE. (Winding Detours) can run even bigger tires while still fitting road cranks!
The monster tires help you conquer the most extreme terrain, the performance geometry & narrow Q-factor keep you efficient while the steering geometry keeps you nimble.
With 650b gravel or mountain bike tires up to 2.4”, rutted singletrack, slippery roots and loose rocks are no match.
With 700c gravel tires up to 46mm, even the toughest gravel roads are tackled at lightning speed.
With 700c road tires (we recommend 35-40mm wide), you have the most comfortable road bike ever invented
Spec’s van de leverancier.
Frame-only size M,
1.040g
Fork-only weight,
390g
Sizes
XS/S/M/L/XL
Stock colors
Grey matte/gloss, Orange, RTP (Ready-To-Paint for custom painting (inspiration gallery, see here). TOUCH-UP PAINT for stock colors can be found here.
RTP (Ready-to-paint)
A clearcoat is not needed for UV protection but recommended to protect against scratches and wear. Some customers leave the frame bare.
BB standard
BB386EVO pressfit 86.5x46mm BB shell
Recommended groupsets
The WIDE is designed for serious off-road riding. We recommend a rear derailleur with a clutch or cage damper (Shimano GRX 1x, SRAM Force AXS & Red AXS 1x, SRAM Apex1, Rival1, Force1, Campagnolo Ekar)
Shimano crank fit
All road cranks
SRAM crank fit
All DUB road, Force 1 BB30
Front derailleur mount
none, 1x drivetrains only
Recommended ring shape
Flat (for example Wolftooth)
Maximum 1x ring size
General guidance: 46t (flat ring, not available in all sizes with all BCDs so check with your crank supplier), 42t (SRAM offset ring). Note: clearance depends on chainline & chainring. 2mm space is required so please verify.
Minimum 1x ring size
In standard set-up: 38t (flat & offset rings). Smaller rings can work depending on cassette/rear derailleur/chain length setup
Rear thru-axle
142x12mm superlight Carbon-Ti X-12
Front thru-axle
100x12mm superlight Carbon-Ti X-12
Front disc rotor size
160mm only
Front brake caliper mount
Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Front brake bolts SRAM
2x 37mm "REAR” brake bolts for 30mm “chainstay” (SRAM part# 00.5318.005.008)
Front brake bolts Shimano
2x 43.2mm “REAR” brake bolts for 30mm “chainstay” (Shimano part# Y8N208030)
Front brake set-up Campagnolo
“140mm” (rear) caliper + 160mm rotor, no adaptors, 2x 39mm "screws for 30-34 mm rear mount thickness” (Campagnolo part# AC18-DBSC39)
Rear disc rotor size
160mm only
Rear brake caliper mount
Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Rear brake bolts SRAM
1x 27mm (SRAM part# 00.5318.005.004), 1x 32mm (SRAM part# 00.5318.005.006)
Rear brake bolts Shimano
1x 33.2mm (part# Y8N208010), 1x 38.2mm (part# Y8N208020)
Rear brake set-up Campagnolo
“140mm” (rear) caliper +160mm rotor, no adaptors, 1x 29mm “screw for 20-24 mm rear mount thickness” (part# AC18-DBSC29), 1x 34mm “screws for 25-29 mm rear mount thickness" (part# AC18-DBSC34)
MultiStop internal system
Mechanical 1x, Di2, eTap
Headset
Integrated IS42/28.6 | IS52/40 with 45x45 degree lower bearing). For example Cane Creek BAA1161 + BAA1131, Chris King DropSet 2 or Token Omega A83
Seatpost
27.2mm diameter, standard set-up zero-offset
Fenders
Compatible with OPEN De-fender or clip-on style fenders (we prefer the SKS Speedrocker)
Cage mounts
Seattube, downtube, under-downtube, under-BB
TT bag mount system
100mm front-post-to-headset-edge
Indoor trainer compatibility
Detailed information here
Installation information
Brake hose installation
Seattube collar installation
Torque specs & BB installation
Max. weight (total rider+luggage)
120kg / 264 lbs (EN/ISO/internal test standard)
Warranty
Detailed information here
Included with frameset: Headset, seattube collar, thru-axles, 2 RD hangers, 3 MultiStops (1x, Di2, eTap), cable exit stop, noise-reduction foam sleeves, bottle cage bolts,
